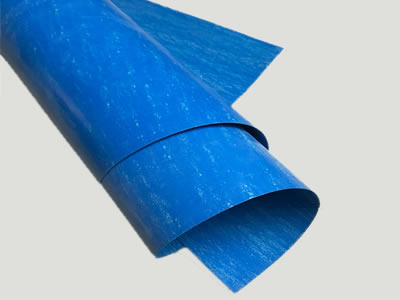

Non-Asbestos Joint Sheet
Non-Asbestos Jointing Sheet are made of the frame materials including aramid fiber and synthetic mineral fiber after special proportioning with natural rubber or oil-resistant rubber binders and adding other functional additives and compression molding it. 1) Non-asbestos jointing sheet series include: NXB200, NXB300, NXB350 Uses: Substitution of corresponding models of asbestos jointing sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline Working pressure : 1.5~8.0 MPa ,Working temperature : 200 ~350℃ 2) Oil-resistance non-asbestos jointing sheet series include: NNY150, NNY250, NNY300, NNY350 Uses: Substitution of corresponding models of asbestos jointing sheet , Mainly used as the aviation liquid the motive's kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material. Working pressure : 7.0~12 MPa ,Working temperature : 150 ~350℃ Available Sizes: Thickness: 0.5 to 5mm 1500 x 4500mm, 1500 x 1500mm The other size is optional or according to the requirements of customers. At the same time, steel wire net inserted (coated graphite) is available. Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.

Saler Company Information

Company : Hengshui Aohong Technology Co.,Ltd.
