Graphite Sheet
  • Seen : 237 View

0
Graphite Sheet

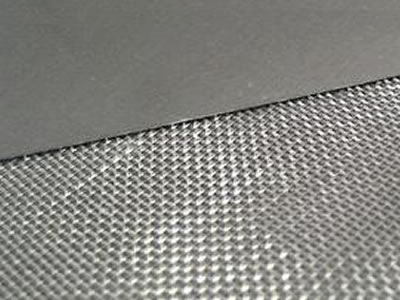

Graphite Sheet With Wire Mesh Graphite Sheet with Wire Mesh is made of expanded flexible graphite, reinforced by a metal mesh of 304 or 316 or Carbon ..... Graphite Sheet with Wire Mesh is made of expanded flexible graphite, reinforced by a metal mesh of 304 or 316 or Carbon steel, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3. Application: Made for various gaskets. Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges, Technical data: Temperature: -200 up to 550°C Pressure: up to 400 bar PH Range: 0 - 14 Advantage : Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature. Media: Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc. Size: 1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm, 1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm 1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm, 1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm

Saler Company Information

Company : Hengshui Aohong Technology Co.,Ltd.
More Information : View
