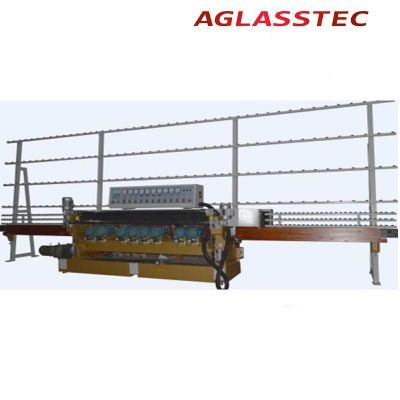

Glass Beveling Machine

This machine is designed for grinding/polishing bevel edge,with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with reinforced sheet steel bone. This structure guarantee glass is stably moved. The working precision is high. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Grinding wheels are driven by high precision ABB motors.This machine is easy to operate and have a durable.

Technical parameters

Spindles: 9 heads.
Speed: 0.7m-3m/min
Max. bevel width: 35mm
Min. glass size: 80mmX80mm
Maximum glass size:3000*3000mm
Glass thickness: 4mm-19mm
Bevel angle: 0°-25°
Total power: 21 KW (380V 50HZ ,according with customer
requirement)
Total dimension: 6.68mX1.3mX1.9m
Weight: 3500Kg
