Power Cable Set & Splitter cable

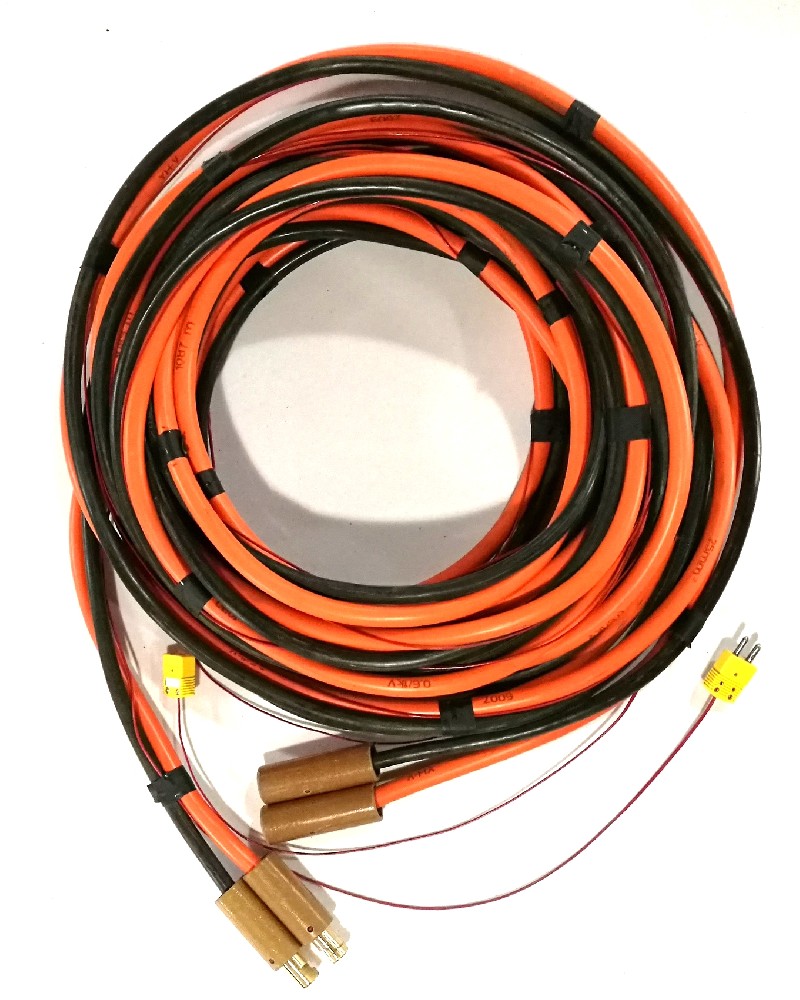

The triple cable set consists of two lengths of heat and oil resistant and flame retardant (HOFR), double insulated copper cable complete

with two 300 amp female camlock connectors on one end and two 300 amp male camlock connectors on the other end. Running alongside

the copper cable is a length of compensating cable which has a thermocouple plug on one end and a thermocouple socket on the opposite end.

– 16mm² 135A welding cable, 300A camlock, Type K compensating cable, STD thermocouple connectors

– 25mm² 185A welding cable, 300A camlock, Type K compensating cable, STD thermocouple connectors

Length: 15m,25m, 30m

cable set for PWHT.jpg

Splitter cables to heater

Material: 16mm² welding cable, PVC or Rubber double insulated
. 10mm² welding cable, PVC or Rubber double insulated
60A female camlock connector
300A male camlock connector

Specification:
-2 way splitter cable set
-3 way splitter cable set
-4 way splitter cable set
