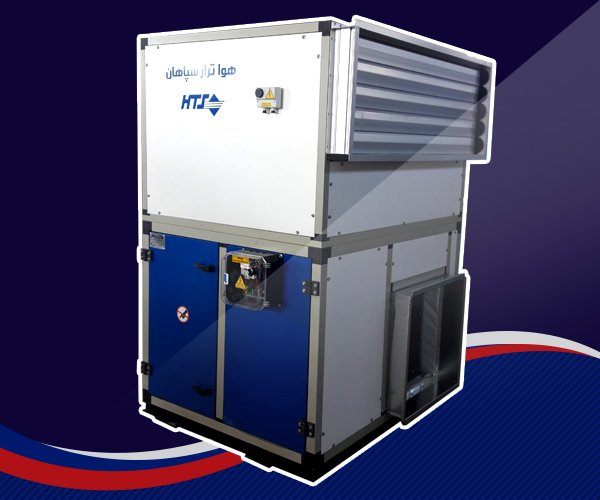

air conditioner

1- Structure made of extruded aluminum profile
2- The body is made of Korean galvanized sheet with electrostatic paint
3- Using thermal insulation to prevent temperature drop
4- Fin plate coils with copper pipes and can be ordered with special coils for hot water, hot water, steam and DX and can be supplied in sizes 3/8, 1/2, 5/8
5-Fan with static and dynamic balance approval, which is installed on the device in the forward type, and backward and air-filled fans can be installed on the device according to the customer's request and order.
6- The total pressure drop in all models is applicable up to 8'wg in all models.
7- Cold coil water distillation pan is made of high-quality, resistant and durable galvanized.
8-Using all kinds of hepa-ulpa-pre filter filters
9- Complete testing of the air conditioner after construction in terms of efficiency and effectiveness
10-Full interior of the device with epoxy paint
11-Using a high-quality shock absorber in the fan outlet to reduce vibration
12-Using the dampers of the Arcio design in Italy, which also has the ability to install a damper motor. In other words, the air flow dampers are of the opposite vane type (obd) and are made entirely of aluminum, and according to the AMCA standard, they have a class 3 air seal. Are. (Damper control is standard, manual, and the damper can be ordered with the ability to connect to a motor or pneumatic jack.)
13-Using screw connections with disassembly capability
14-Complete ventilation of the air conditioner
15- Chassis and profile thickness of the air conditioner is variable based on the capacity of the air conditioner and can be defined.
16- In order to inject moisture into the air, Luwa design nozzles are used, the exclusive production of which is entirely owned by Hawatraz Sepahan Company. In some cases, Fog Nozzle and Steam Humidifier are also used according to the customer's order.

Saler Company Information

Company : Havataraz Sepahan
Mobile : 00989134044885
Phone : 00983146412628
More Information : View
Online order registration form
