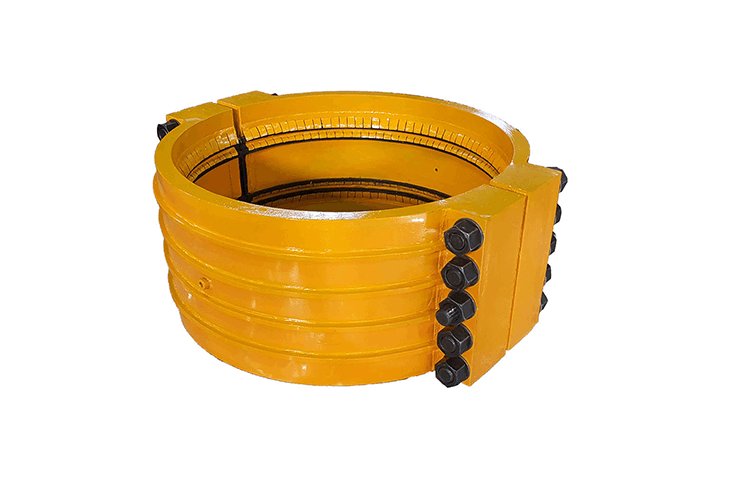

Two-piece repair clamp

The two-piece repair clamps of South Rotary Machine Maintenance Company are used for the permanent repair of pipelines on land or sea. These clamps are used to repair pipelines of oil, gas, steam, water and other chemicals with low or very high pressure and temperature. The design of this clamp allows pipeline repairs to be performed while the line is active
These clamps are designed for quick and easy installation. The retainer sheets hold the rubber seals in place during installation. The sealing operation is complete when the clamps are secured in place with screws. Of course, it is also possible to weld the clamp to the pipeline to make the repairs permanent. All calculations of clamps are based on ASME Sec. VIII Div.1 is done.


Advantages
1- Easy repair of severely damaged pipes
2- Can be used in very high pressure and temperature
3- The ability to easily replace the sealing rubber
5- The possibility of ordering extra tires

Information required for ordering
1- Pipeline diameter (up to diameter 56)
2- The length of the sealing area (up to 1 meter)
3- Use at sea or on land
4- Raw materials (usually it is A516 Gr.70, other raw materials can be provided upon order.)
5- raw materials for sealing rubber (usually NBR, other elastomers such as Viton can also be ordered.)
6- Type of screws (A193 Gr.B7, A194 Gr.2H)
7- Painting system (usually one layer of Zinc Rich Epoxy)
8- Special shapes such as bent, branched or unusual sizes can also be ordered.
9- Hook location
10 - Double layer sealing rubber
11- Installation of connection for FEM injection

Standard quality tests
1- Mechanical and chemical tests of raw materials
2- Ultrasonic wave test to check the welding lines
3- Presenting the quality certificate of the manufacturer of raw materials for sealing rubber
4- Dimensional inspection
5- Hydraulic leak detection test

Saler Company Information

Company : Maintenance and repair of South rotary machines
Phone : 00982188427510
More Information : View
Online order registration form
