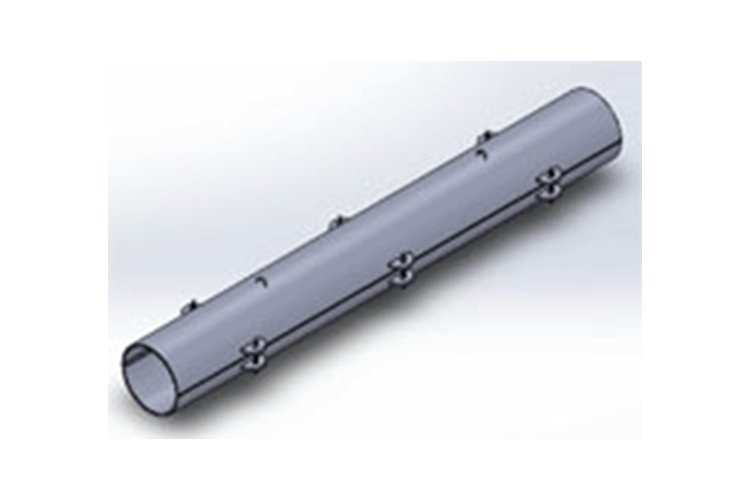

welding sheath

These sheaths are designed to strengthen damaged pipes that do not leak. Pipeline repair by this type of sheath is economical and fast. The design of these sheaths has been carried out according to ANSI/ASME B31.4, B31.8 standards and is completely in accordance with the requirements of Iran Pipelines and Telecommunications Company. These pods are now widely used in the country
All the longitudinal edges of the welding sheaths of South Rotary Machine Maintenance Company are machined for welding operations. Also, to protect the pipe body, protective belts are installed in the place of longitudinal welds. All clamps have hook and jack bolts for easier installation
For installation, the sheath must first be placed in the previously specified location. The two pieces of the sheath must be completely in the same line, after that, the two pieces of the sheath are fixed in place by closing the jack bolts. Finally, both ends and two longitudinal lines of the sheath must be fully welded

Advantages
1- Prevention of serious pipeline damage
2- Easy installation
3- Quick repair
4- Economical
5- Can be used in the sea

Information required for ordering
1- Pipeline diameter (up to diameter 56)
2- Required length (up to 3 meters)
3- Use at sea or on land (to choose the type of cover)
4- Raw materials (usually it is A516 Gr.70, other raw materials can be provided upon order.)
5- Painting system (usually one layer of Zinc Rich Epoxy)
6- Unusual sizes can also be ordered

Standard quality tests
1- Mechanical and chemical tests of raw materials
2- Penetrating material test on the edges of the equipment to determine peeling and cracks
3- Dimensional inspection
4- Test on the pipe to find possible installation defects

Saler Company Information

Company : Maintenance and repair of South rotary machines
Phone : 00982188427510
More Information : View
Online order registration form
