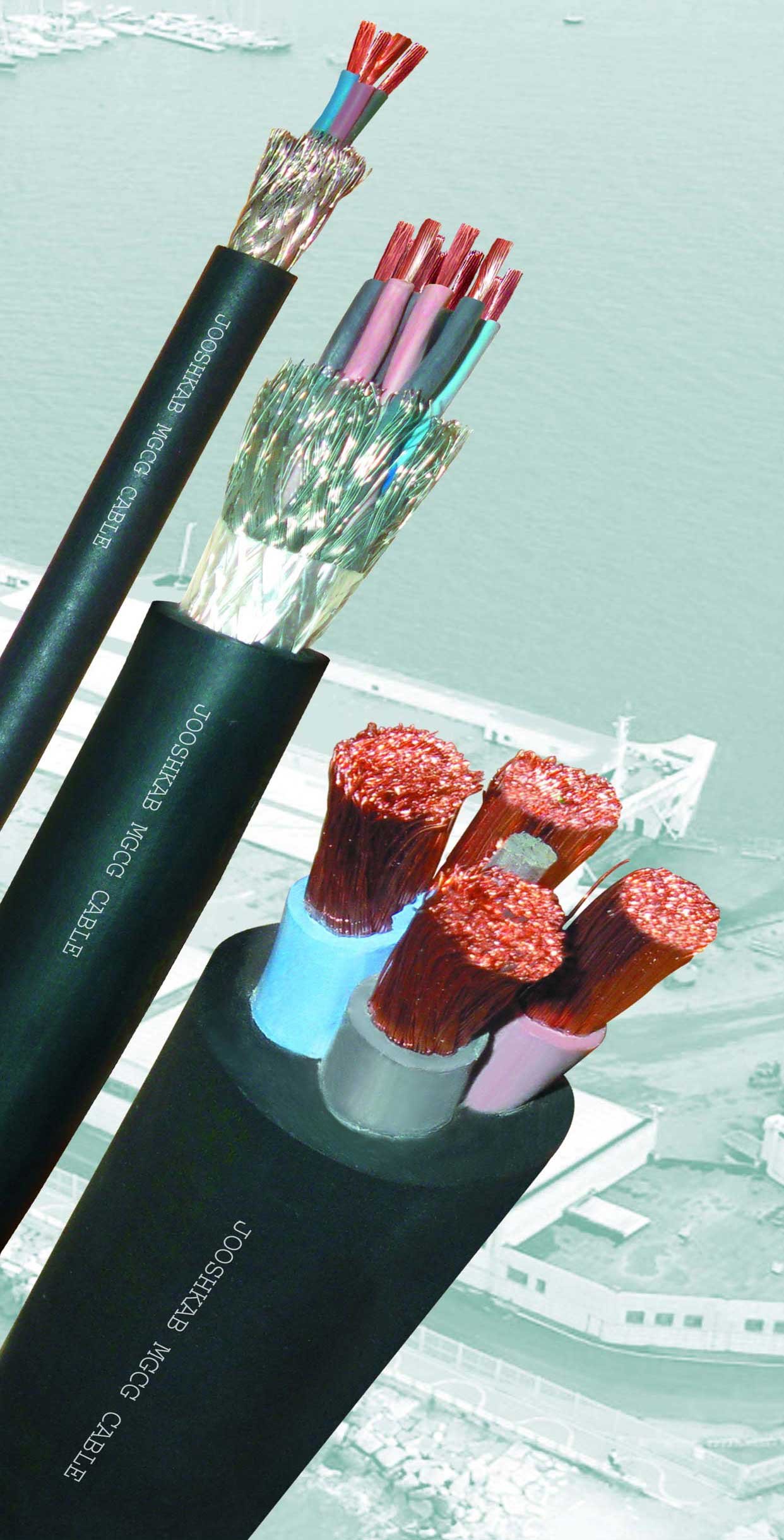

Power Cables with Shielded or Rubber Shielded (MGCG)
Production standard: ISIR (7599) 353
Working voltage: 600/1000 V
Conductor: Class 5 annealed copper sprayer (if required tin plated)
Conductive separator: Polyester tape (for sections 10 mm square and larger)
Insulation: Special Rubber Compound (EPR) type EI 7 (90 ° C)
Middle cover separator: Polyester tape
Middle cover: black rubber compound (90 ° C)
Shield: Tin plated copper texture
Shield separator: polyester tape
Finish: Black rubber compound SE 1 (EM 7 for 90 ° C) oil and oil resistant
Voltage test: 3.5 kV for 5 minutes
Flame testing: Vertical flame propagation test - Category A
Other tests: Based on ISIRI 7599 standard tests
