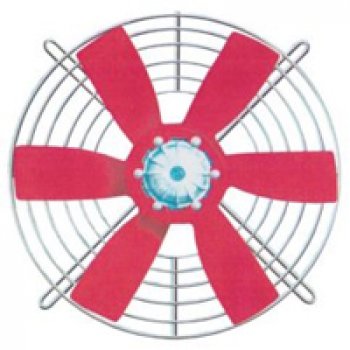

Wall fans are made according to the Danish MULTIWING model. The blade material of these fans is metal with special industrial paint or stainless steel or MULTIWING plastic and power transmission is direct.
These fans are basically composed of several parts such as frame, impeller, electric motor and protection net.
The frame of these fans is made of ST-37 sheet with special industrial paint to have a maximum useful life in different climates, and for maximum efficiency, a funnel-shaped opening (BELLMOUTH) has been created on it, and four holes have been made on it for ease of installation. Embedded.
All ventilators have a net at the outlet (manual damper at the inlet and aluminum or metal weight damper and protective net at the ventilation outlet are considered as additional accessories.)
The whole body is connected by screws and bolts and the motor is placed in a special base to have the lowest sound at the highest efficiency.
The electric motors have a low noise and are made according to the design of Spain and German VEM or are completely Italian.
The blades have 2 RANGE.
100 to 300 mm: which is a metal with a special industrial coating and is made in 2 types of 1400 and 2900 rounds and all are single-phase Iranian and Italian (according to the buyer's request)
300 to 1000 mm made of stainless or Molly Wing plastic (according to buyer's request)
This RANGE is made in 1 phase, 3 phase and 900 rpm and 1400 rpm and the motors are German or Spanish model (according to the buyer's request) and all of them are static and dynamic balance. (1985- 51 ASHRAE AMCA)
The blades are also designed to produce the maximum capacity at the lowest possible sound.
Window fans:
Window fans (up to 600 cfm capacity)
Made according to the example of MULTIWING in Denmark, it has a beautiful and luxurious shape and works in a low sound.
The material of this ventilator is plastic and in some cases it is accompanied by a plastic damper and the power transmission can be done directly.
The motors are all 1 phase Italian and their speed (RPM1400 and 2800 RPM).
Their dimensions are from 100 mm to 300 mm.
