1- Butt fusion welding machine - butt welding
Butt fusion is one of the best welding joints for polyethylene pipes. This type of welding can be used for pipes that are equal in diameter, thickness and material. The Bat Fusion method is used in sewer, water supply and fire distribution networks at different pressures.
2- Electrofusion welding machine
Electrophogenic welding is more commonly used in gas supply networks.
3- Extruder welding machine
Extruder welding machine is a machine that is used manually to repair welding and polyethylene pipe fittings. This type of welding machine is produced in different sizes.

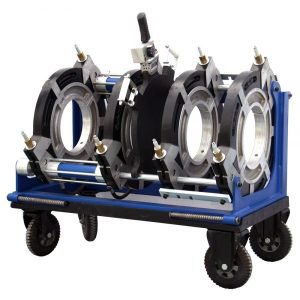

Polyethylene welding machines are produced in 3 general classes, including manual, semi-hydraulic and all hydraulic.
Manual polyethylene welding machines:
Manual polyethylene welding machines consist of 2 jaws, one of which is fixed and the other is movable. This class can be supplied in 110, 160, 200, 250 and 315 sizes. The driving force of these devices is human resources by It is a lever. This class covers work from 32 to 315 mm in size.
Semi-hydraulic polyethylene welding machines:
Semi-hydraulic polyethylene welding machines consist of 4 jaws that are used as 2 fixed jaws and 2 movable jaws. This class has the ability to weld up to 315 sizes in two forms: flat (90 degrees) and 45 degrees. Also, using the comb, the device can be used as a fixed jaw and 3 movable jaws. This class is available in 160, 200, 250, 315 and 400 sizes and the working range in this class is from 50 to 400 mm. The driving force of this device is a manual hydraulic pump.
All-hydraulic polyethylene welding machines:
The all-hydraulic polyethylene welding machine consists of 4 jaws, which are used as 2 fixed jaws and 2 movable jaws. With the help of a comb, the device can be used as 1 fixed jaw and 3 movable jaws. This class up to the other 315 can be welded in 2 beds (90 degrees) and 45 degrees and can be offered in 160, 200, 250, 315, 400, 500, 630, 800, 1000 and 1200 sizes and their working range is from Size is 50 to 1200 mm. The driving force of these devices is in the form of electric pumps (power pumps or power units) which are 500 phases of size 500 and above.
Sewage polyethylene welding machine
The sewage welding machine is used for the implementation of pipes and sewage connections in home facilities, and it is also used for sewage piping of houses and industrial facilities.
Ability to weld polyethylene pipes and fittings, sizes 160-125-110-90-75-63-550 mm and has a pressure of 4-6-10 and 16 atmospheres. The weight of the device is 57 kg.
