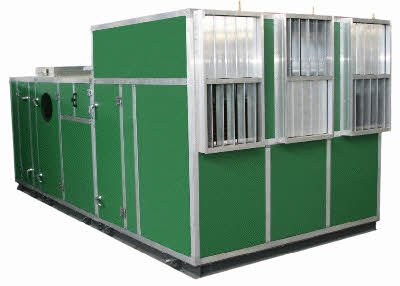

Available in 12 sizes to meet a wide range of cooling & heating &ventilation requirements. Triple-Deck Multizone is available to provide accurate interior zone temperature control.
-
Standard frame is constructed of aluminum channels with aluminum die cast corners (up to 4000 model).
-
Frame with constructed with galvanized sheet metal connected with welding and bolts is available as request.
-
Standard fans are designed with forward curved blades, (backward curved and airfoils are also available).
-
Static pressure up to 8 in.w.g. All fan shafts are made of carbon steel With chilled water, hot water, DX, and steam coils as required.
-
Standard coils are designed with 3/8”, 5/8" with plate fin And 3/4",1/2”,1” with spiral fins.
- Blygold coils as options
-
Spiral and plate fin materials include aluminum, copper, brass, carbon steel and stainless steel.
-
Air washer, fog nozzle, sprayed coil, steam humidifier and spray nozzle are also available as humidification options.
-
Standard washable filters are installed in mixing box with 20% dust spot efficiency.
-
Drain pan made of gal or steel sheet metal. High efficiency filters is also available as request.
-
Flow control dampers constructed of aluminum opposed blade with class III tightness based on AMCA standards.
-
Based chassis is constructed with heavy gage carbon sheet channels.
