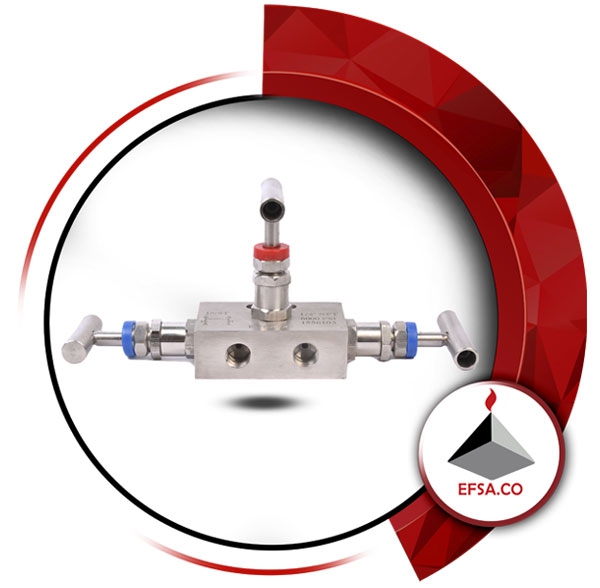

Manifold

A manifold is a device that can be used to distribute fluids in piping systems. Usually, manifolds include valves to control the flow or open and close the fluid flow, and also include other flow control devices (such as chokes). Manifolds can be used to collect fluids and direct selected oil wells to the test pipeline. It is also used to distribute injected liquids (gas or water) or extract gas to individual wells. Manifolds in various oil and gas industries, automobile manufacturing, etc. And they are used in places where there is a need to divide the flow.

Manifolds include connection points for closing in lines or returning pipes to the host center. Also, the connection points for production wells are individual. Manifolds require some kind of framework for structural support of various pipes and valves. Sometimes these frames and manifolds are combined with the two ends of the pipe bundle, which in this case is usually known as PLEM. Similarly, a separate mounting mold can be used to support the manifold as described below.
Manifold in oil and gas industries

Manifolds (MFD) transfer oil and gas from separators to furnaces or to tanks for storage or measurement or to production pipes without interrupting the flow.

Two furnaces are commonly used in offshore operations that allow continuous testing under any continuous wind direction. Any valve or starboard of the furnace can be selected without interrupting the test wells. From the measuring source to the transfer pump that increases the pressure, the flow is piped to the manifold. Therefore, the oil can be provided to the furnaces or re-injected into the flow pipes. Oil manifolds allow flow into one tank while the pump empties the other tank.

Oil manifolds include five ball valves that are arranged in multiple ways and installed in a skid.

The gas manifold is equipped with two ball valves and is installed as a skid.

Saler Company Information

Company : Tajhizat Farasanat Arman
Phone : 00983136644734
More Information : View
