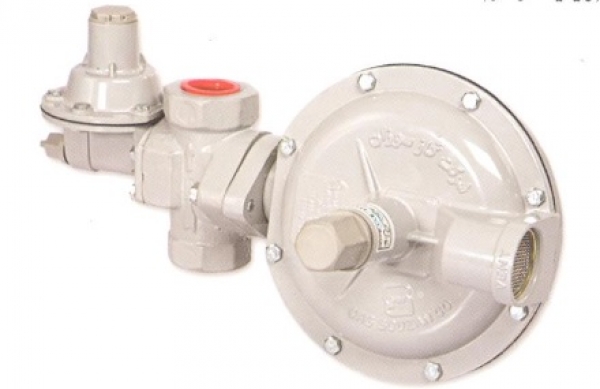

Regulator GS-64-22

GS-64-22 model gas regulators are designed for home use and have high capabilities. In terms of technical specifications, these regulators have the most consumption in the field of household regulators in Iran.



Specifications:

- Constant gas pressure at the outlet in the range of zero gas flow to the maximum gassing capacity of the regulator

- If the gas pressure at the regulator inlet reaches a minimum, the regulator's gassing capacity does not decrease from the predetermined value.

- In the conditions of maximum pressure at the regulator inlet and no output (Q=0, Pin=60 psig), the regulator remains in service and the output pressure does not exceed the set amount.

- Due to the fact that it is not possible horizontally in some places. All GS-64-22 model regulators manufactured by Gazsozan Company are designed in such a way that the diaphragm chamber can be rotated 360 degrees relative to the body.

- Safety device to cut off the gas flow in the event of a drop in the input pressure from the permissible limit (LPSO). This system is designed in such a way that it automatically cuts off the gas flow in the event of a drop in the output pressure in the regulator.

- The safety device to cut off the gas flow in case the output pressure increases to more than the allowed amount (HPSO) This system is designed in such a way that it automatically cuts off the gas flow if the output pressure increases more than the allowed limit.

- The safety valve directs the gas flow to the free space if the gas output pressure in the regulator increases above the set limit. (relief valve)
