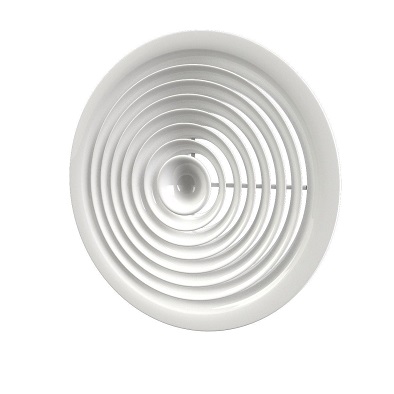

Flat round ceiling valve (flat round diffuser) can be used in cooling, heating and air conditioning applications. which can be used for forward, return and exhaust valves with a high volume of passing air in ceilings with a height of less than 4 meters. Due to the aerodynamic structure of the vanes, these air regulating valves create very little noise when the airflow passes over the vanes. Like the swirl (solar) and round raised vents, the air distribution of flat round ceiling vents is 360 degrees, which helps to distribute the passing air flow as homogeneously as possible, with the difference that the air distribution pattern of this model is from the air regulation valves to The broadcast mode is wide horizontal (Wide Horizontal).
Installation of flat round ceiling valve
These valves can be installed on all kinds of false ceilings and even connect directly to round channels. Due to the property of the spring separation of the vanes from the valve frame, the vanes of this product can be easily separated from the frame and the installation operation can be performed from inside the frame, which means that there is no need for screw holes on the face of the frame. which will have a great impact on the appearance and architecture of the space. Shahrokhi Technical Institute uses the best alloys of aluminum sheets to produce flat round roof vents.
The flat round ceiling valve is one of the popular air conditioning valves of architects and facility designers and is widely used in civil and industrial projects. Among the special applications of this window, we can mention the use in exposed design and open plan, such as large exhibition halls, supermarkets, airports, factories, etc.
If required by the customer, the valve can be produced with a screw hole in the frame, damper behind the butterfly valve, damper behind the half-plate valve, conversion behind the valve for the Flexi Bell channel, the valve inside the Armstrong tile and in different types of electrostatic powder colors. did
