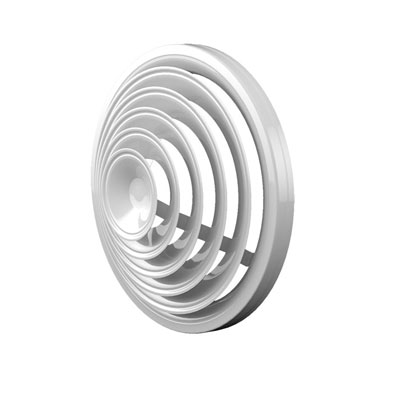

The raised round ceiling valve (raised round diffuser) can be used in cooling, heating and air conditioning applications. This valve can be used for forward, return and exhaust (exhaust) with high air volume and high speed (up to 2000 feet per meter) in ceilings with a height of less than 4 meters. Due to the aerodynamic structure of the vanes, these air regulating valves create very little noise when the airflow passes over the vanes.
Like the vortex (solar) vents and the flat round ceiling vent, the air distribution of the prominent round ceiling vents is also 360 degrees, which helps to distribute the passing air flow more homogeneously, with the difference that the air distribution pattern of this model is from the vents. Air adjustment is semi-horizontal.
Installation of a raised aluminum round ceiling valve
These valves can be installed on all kinds of false ceilings and even connect directly to round channels. Due to the property of the spring separation of the vanes from the valve frame, the vanes of this product can be easily separated from the frame and the installation operation can be performed from inside the frame, which means that there is no need for screw holes on the face of the frame. which will have a great impact on the appearance and architecture of the space.
Shahrokhi Technical Institute uses the best alloys of aluminum sheets to produce flat round roof vents. The high quality of manufacturing of these valves in Shahrokhi Technical Institute has led to the export of this product to the Persian Gulf countries. Like the flat round model, these vents are used in exposed design and open plan designs such as large exhibition halls, supermarkets, airports, factories, etc.
If required by the customer, the valve can be produced with a screw hole in the frame, damper behind the butterfly valve, damper behind the half-plate valve, conversion behind the valve for the Flexi Bell channel, the valve inside the Armstrong tile and in different types of electrostatic powder colors. did
