Armstrong tiles, which are also known as Knauf tile roofs today, are actually networked and integrated false ceilings of galvanized or aluminum structure. They are made in various types of gypsum, PVC, acoustic or aluminum tiles. And they have high capabilities in design and speed in the implementation of various administrative projects and bathroom roofs. Shahrokhi Technical Institute is one of the top manufacturers of Armstrong tile valves, which are also known as tile valves.
Armstrong tiles are often known as 60x60 gypsum tiles, and one of its unique advantages is easy access to the facilities used behind the false ceiling. In case of installing a plenum box or converting round to square behind the special Armstrong tile valves and connecting the valve to the main channel by means of flexible channels, in addition to reducing the cost of channeling, the valve can be moved to adjacent tiles if needed. One of the challenges in channeling tiled roofs is the exact coordination of the outlet of the channel and the tile in which the valve is placed. Therefore, by using the mentioned conversion or plenum box, there is no need for high accuracy in channeling and the distance between the channel and the valve is connected by flexible channels.

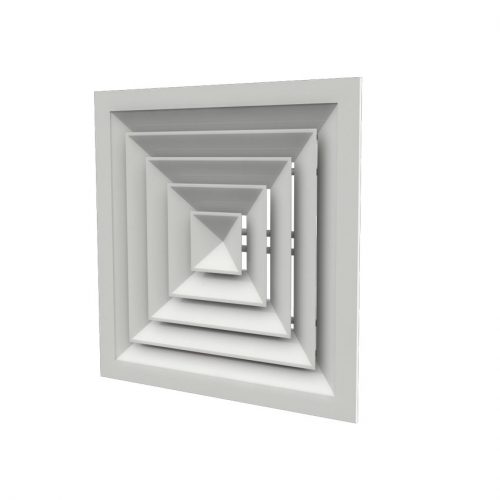

Types of Armstrong tail valves for exhaust air
Tail Armstrong special valves for exhaust air are produced in different shapes. Among its most common types, we can mention four-way wide Armstrong valve. Other common models are three-, two- and one-way wide Armstrong coils. There is also the possibility of placing different types of valves such as flat round roof, wide open coil valves and wide coil valves inside aluminum plates according to Armstrong tiles. By using different types of valves in these tiles, the required flow patterns can be created to ventilate the space as well as possible.
In most cases, Tail Armstrong special valves are ordered by changing the back of the valve with different diameters, and it is possible to install a variety of parallel and opposite dampers behind the valve. Also, this valve model is produced in different types of electrostatic powder colors.
Capabilities: very easy installation and flexibility by using conversions with different dimensions to connect to the channel - beautiful and decorative appearance for all types of home, office, restaurant and hotel uses
Uses: For false ceiling tiles of Armstrong type with sizes of 60*60 and 62*62 cm.
