Long throw vents are the right choice for spaces where ventilation air needs to be transported to far distances from the air outlet. One of the solutions offered by Shahrokhi Technical Institute for the long launch of air flow is nozzle jet valves.

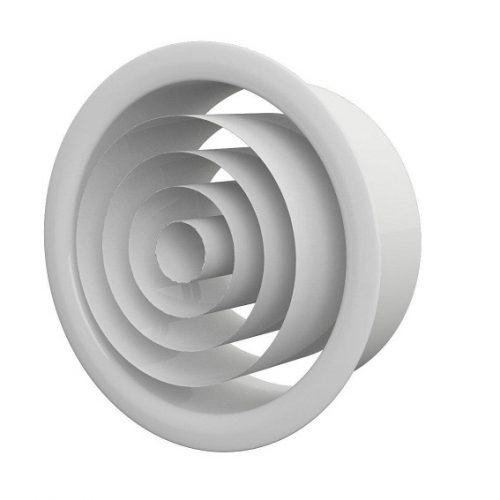

Application of jet nozzle

Jet nozzles are designed to blow large volumes of air in large spaces that require a long throw. From these spaces, we can refer to production halls and theaters. These vents can be used on the ceiling (vertical projection) or on the wall (horizontal projection).

Unlike jet diffuser valves, which have the ability to change the direction of flow up to 30 degrees in all directions, jet nozzle valves have the ability to change the direction of flow up to 30 degrees around only one axis. By using this feature, in addition to the ability to direct the air flow to the desired point, it is possible in the cold and hot seasons of the year to open the valve based on the direction of hot wind (downward projection due to the rising nature of hot air) and cold wind (upward projection). due to the descending nature of cold air) changed.

One of the capabilities of this nozzle jet valve is to provide square elements in the form of single element to four elements, which provide the ability to inject a large volume of air into the environment. These valves are available in standard nominal diameters of 100-125-160-2-250-315-400 and... for aeration from 54 to 1440 cubic meters per hour and the ability to adjust the flow from -30 to +30, made of high quality aluminum sheet. turn around

Like most of the valves produced in this collection, an automatic screw is used to install this product, and instead of a screw (treasure), it is created before applying the color coating on the valve frame. It is better to install this valve on a wooden or metal frame to be sure, and if the valve is installed directly on plaster, there is a possibility of the valve loosening over time. In order to install this valve on false walls with dry materials (Kenaf, etc.), it must be ensured that special false ceiling profiles are used around the opening of the valve for strength and reliable connection of the valve to the wall.
The final cover of the nozzle jet valve

For the final coating of these valves, electrostatic furnace colors are used. After completing the production steps, the valves are acid washed to remove any grease dust and other particles, and after applying the desired undercoating (it is selected according to the type of metal and a different coating is used for each type of metal), it is sprayed on the camwire line. and are placed in the oven. At this stage, the color required by the customers is sprayed on the surface and the vents enter the oven during the baking stage. In the baking stage, the temperature of the furnace (the temperature graph that the valve experiences) is very important, and incomplete baking has an adverse effect on the final coating. Also, overcooking the paint causes the color to change and become matte.

On 12/16/1390, Shahrokhi Technical Institute was successful in receiving the license to use the mandatory national standard mark of air valves for the first time in Iran, and according to the decree of the National Standards Department of Iran, it started working as a partner laboratory of the Standards Department. All products produced in Shahrokhi Technical Institute, including this product, have the ability to perform various types of tests in the presence of supervisors and customers in accordance with standards 7693 and 7695 for pressure drop, throw length, flow distribution pattern and other parameters.

Installation location: inside the ceiling, wall or open channels
Material: Aluminum
Uses: industrial environments, halls and gymnasiums
Features: centralized air distribution with the ability to adjust in all directions, placement in the box in types of one, two, three and four elements, the ability to ventilate up to 8000 feet per minute, with a square and round frame
