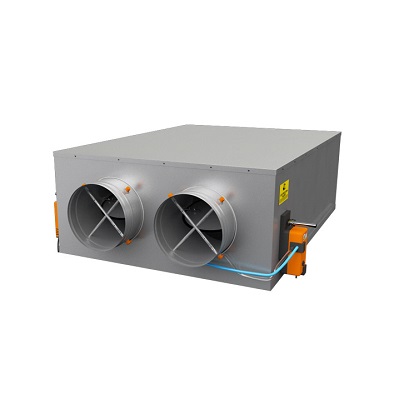

Dual-channel variable volume terminal with mixing in the Dual Duct VAV Box (Mixing) terminal. Two-channel terminals include two single-channel units next to each other, each of these units has a separate air inlet duct as well as an inlet air volume control system including a damper, flow sensor operator and other controllers required according to the type of use. which eventually end up in a common mixing chamber. This mixing chamber prevents layered temperature distribution and by mixing hot and cold air, it creates a uniform temperature in the entire air entering the space. These types of terminals adjust the volume of hot or cold air (without mixing) according to the feedback received from the room thermostat. The volume of incoming air may be variable (minimum value created by the mixing of two hot and cold air streams) or fixed. The application of the two-channel variable air volume terminal with mixing in the terminal is the same as the two-channel terminals without mixing.
