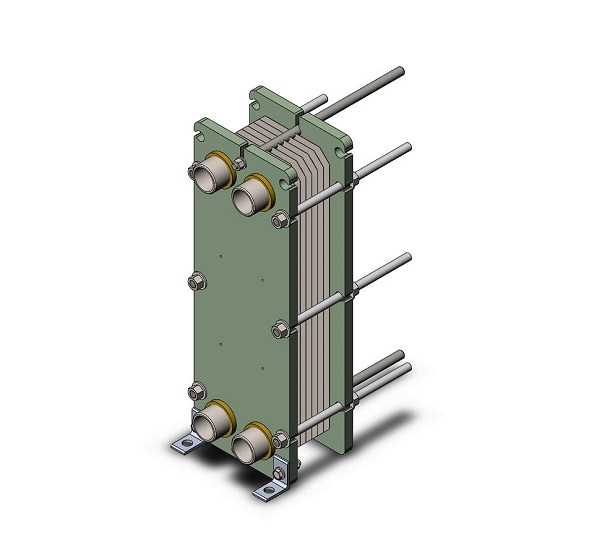

Sahand SD05 plate heat exchanger

Flow rate: 8-50 cubic meters per hour

Frame material: SA-516/EN 10025-2 S235JR, SA-240 Type 304L

Plate material: SA-240 Type 316L, SB-265 Gr. 1, SB-575 N10276

, SB-162 N02200/N02201

The material of custom plates can be prepared at the customer's request.

Gasket material: EPDM, NBR, HNBR, FKM

Custom gasket material can be provided at the customer's request.

Connection type: THREADED PIPE

The type of custom connection can be made according to the customer's request.

Manufacturing standard: ASME BPVC VIII-1, API STD 662-1

Special standard type can be made upon customer's request.

Connection size: NPS 2, DN 50

Maximum working pressure: 22 bar

Maximum working temperature: 180 degrees Celsius
