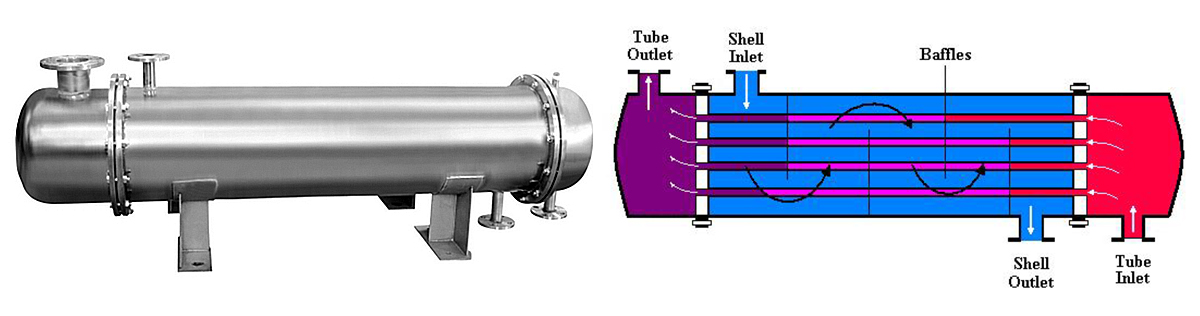

Shell and tube heat exchanger

One of the types of heat exchangers used in the industry is tube-shell heat exchangers, which are designed and manufactured for different applications and in different sizes. These types of converters are used to evaporate a liquid or condense a vapor or transfer between two liquids.

This type of exchanger consists of a large number of tubes containing fluid, whose outer part is in contact with another fluid, and heat transfer is possible through the intermediate surface, which is the body or wall of the tube, so the material of the tubes should be selected in such a way that, in addition to durability, it is a good conductor of heat.

In tube-shell converters, two metal plates are usually placed at the beginning and end of the converter, and holes are created on these sheets for the number of tubes inside the converter, and these tubes are connected to the tube plate through welding or mechanically.

Saler Company Information

Company : Cool Summer
Mobile : 00989195679104
Phone : 00982146827608
More Information : View
Online order registration form
