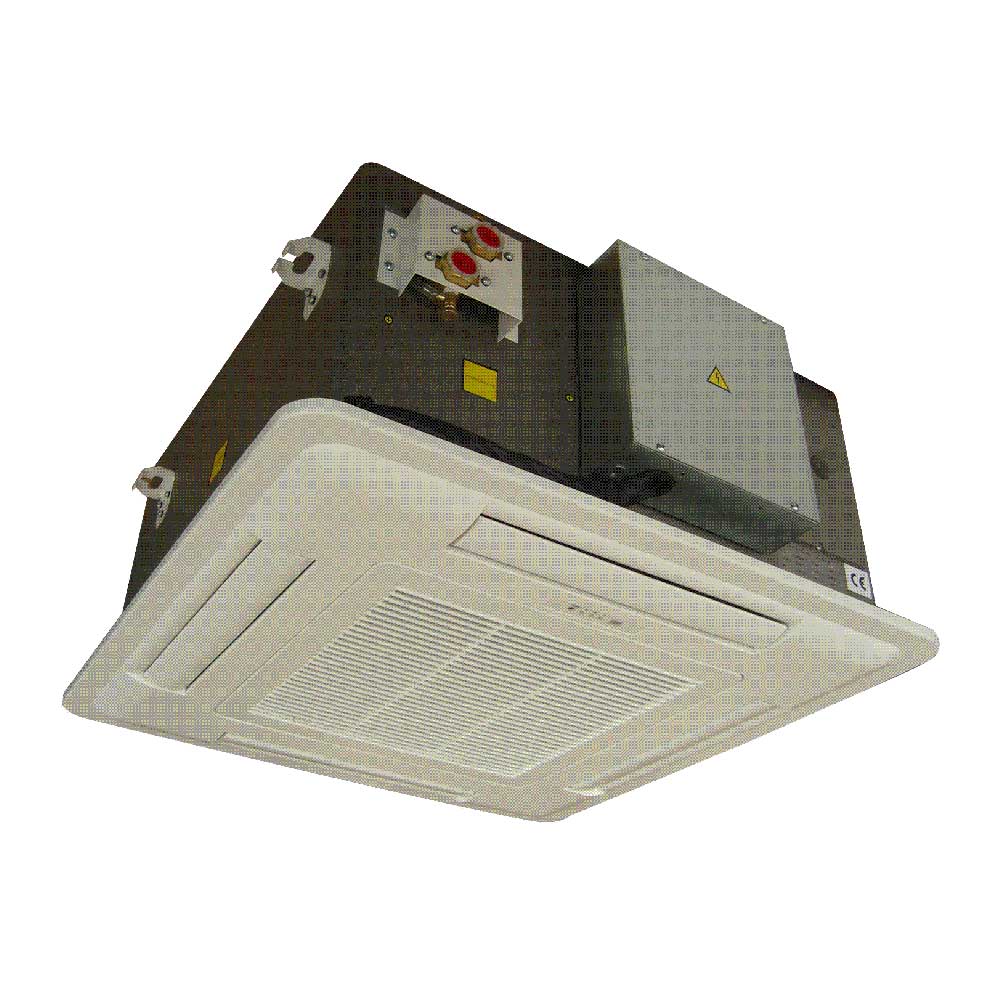

Four sided fan coil shortcoming

o Beautiful and decorative appearance
o Equipped with electric motor with thermal class B and ip20
o Equipped with a drain pump to drain condensate water
o Equipped with a control system with high capabilities and quality
o Ability to connect to BMS (optional)
o Four-tube fan coil control capability (optional)
Very suitable dimensions with low height and ease of installation
o The body is made of high-quality galvanized sheet with a thickness of 1 mm
o Coil made of 3/8 size copper tubes and 150 micron aluminum fin
o Leakage test of coils with a pressure of 190 psi to make sure there is no leakage
o Using brass collectors with a size of 4.3 inches that is threaded outside the collector
o Using wavy fins to increase heat transfer with 12 inch fins
o Plastic filter with pp fibers with high efficiency in absorbing dust and dust with excellent quality
o Used balanced backward type fan made of high quality fiber ABS material, good performance and low noise level
Insulation of the internal wall of the device with 10 mm thick adhesive back insulation to prevent energy wastage and also reduce the noise level of the device.

Saler Company Information

Company : Arman Tahvieh Alvand
Mobile : 00989124669479
Phone : 00982832249914
More Information : View
