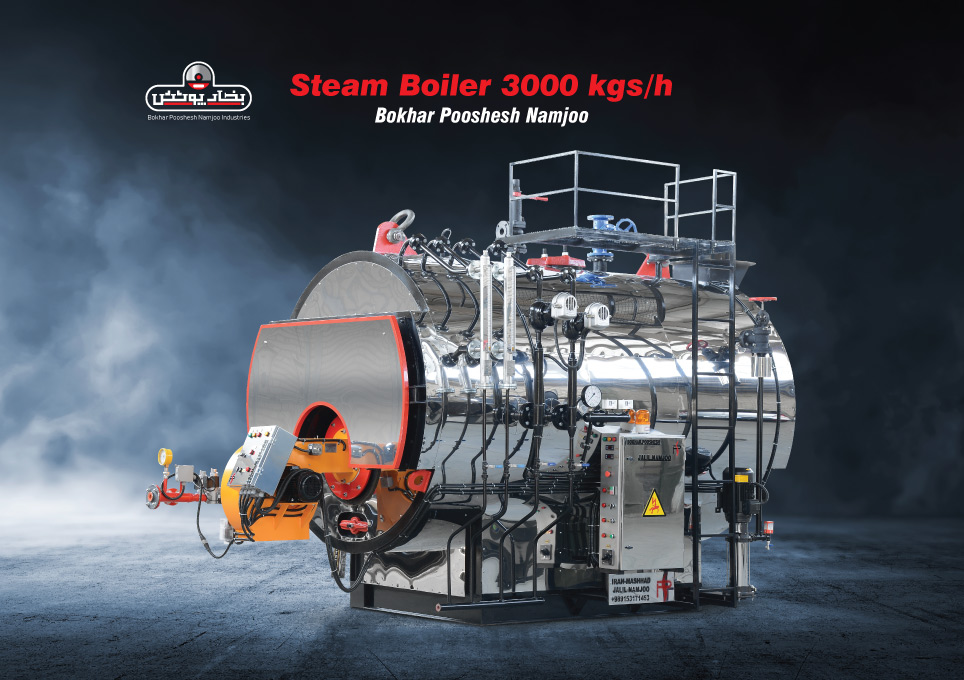

3 ton steam boiler

Fire tube boilers are produced from 260 kg of steam per hour to 15000 kg of steam per hour. This company is the first and only producer of steam boilers with a capacity of 12,000 kg of steam per hour in Razavi Khorasan province. All products with all capacities have a quality control plate and have passed all relevant tests with high sensitivity during manufacturing, including cold water hydrostatic UT, RT, PT test.
Technical characteristics
3 ton steam boiler
Covering steam burner with a capacity of 2,500,000 kilocalories per hour
The fuel line is installed on the burner, which has a gas or diesel or diesel pressure display depending on the type of fuel used.
The amount of fuel consumed for use with gas is 160-300 cubic meters per hour and the required pressure is 100-160 millibars.
Three phase power consumption 30 A
All steel cover
The main electrical panel is made of steel
Korea's LS switchboard accessories
Burner electrical panel made of steel
Other specifications have two water level controls - have two steel water level monitors with titanium balls - have two pressure gauges - have two device pressure controllers - have two heat thermostats that can be programmed for greater device safety - have a steel water pump with air vent valves and pressure gauge with two steel one-way valves to increase the life of the water pump - the ability to install an additional pump and easily and automatically change from back pump to another pump - the valves used in the device are in accordance with the standard - accurate and calculated design For easier piping and installation - it has a single fabric insulation from the beginning of the device to the end

Saler Company Information

Company : Sanayeh Bokhar Poshesh
