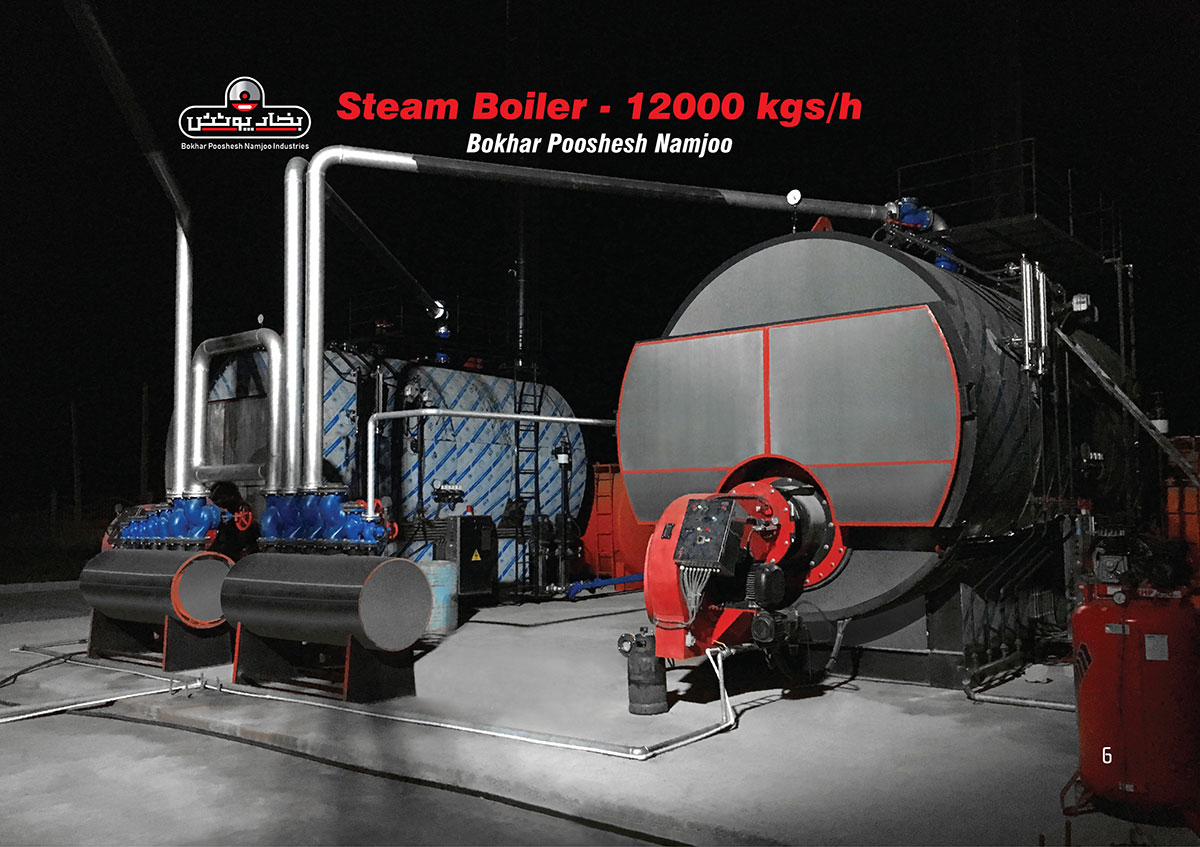

Boiler 12 tons

Fire tube boilers are produced with a capacity of 260 kg of steam per hour to 15000 kg of steam per hour. This company is the first and only manufacturer of steam boilers with a capacity of 12000 kg of steam in The time is in Khorasan Razavi province. Steam boilers are produced according to BS2790 of England and 4231 of Iran.<br>&lt ;br> All products with all capacities have a quality control plate and have also passed all relevant tests with high sensitivity during manufacturing, including UT, RT, PT cold water hydrostatic test.
Technical characteristics
Boiler 12 tons
Covering steam burner with a capacity of 10,000,000 kilocalories per hour
The fuel line is installed on the burner, which has a gas or diesel or diesel pressure display depending on the type of fuel used.
The amount of fuel consumed for use with gas is 500-1000 cubic meters per hour and the required pressure is 100-160 millibars.
Three-phase power consumption 85 A
All steel cover
The main electrical panel is made of steel
Korea's LS switchboard accessories
Burner electrical panel made of steel
Other specifications, with the ability to install larger burners up to one size - the ability to install different types of burners with different fuels - with two water level controls - with two steel water level displays with titanium balls - with two pressure gauges - with two device pressure controllers - It has three programmable thermal thermostats for greater safety of the device - It has a steel water pump with ventilation valves and a pressure gauge with two one-way steel valves to increase the life of the water pump - The ability to install an additional pump and replace it easily and fully automatically from one Pump to pump - The valves used in the device are according to the standard - Accurate and calculated design for easier piping and installation - It has a single fabric insulation from the beginning to the end of the device for less energy loss
