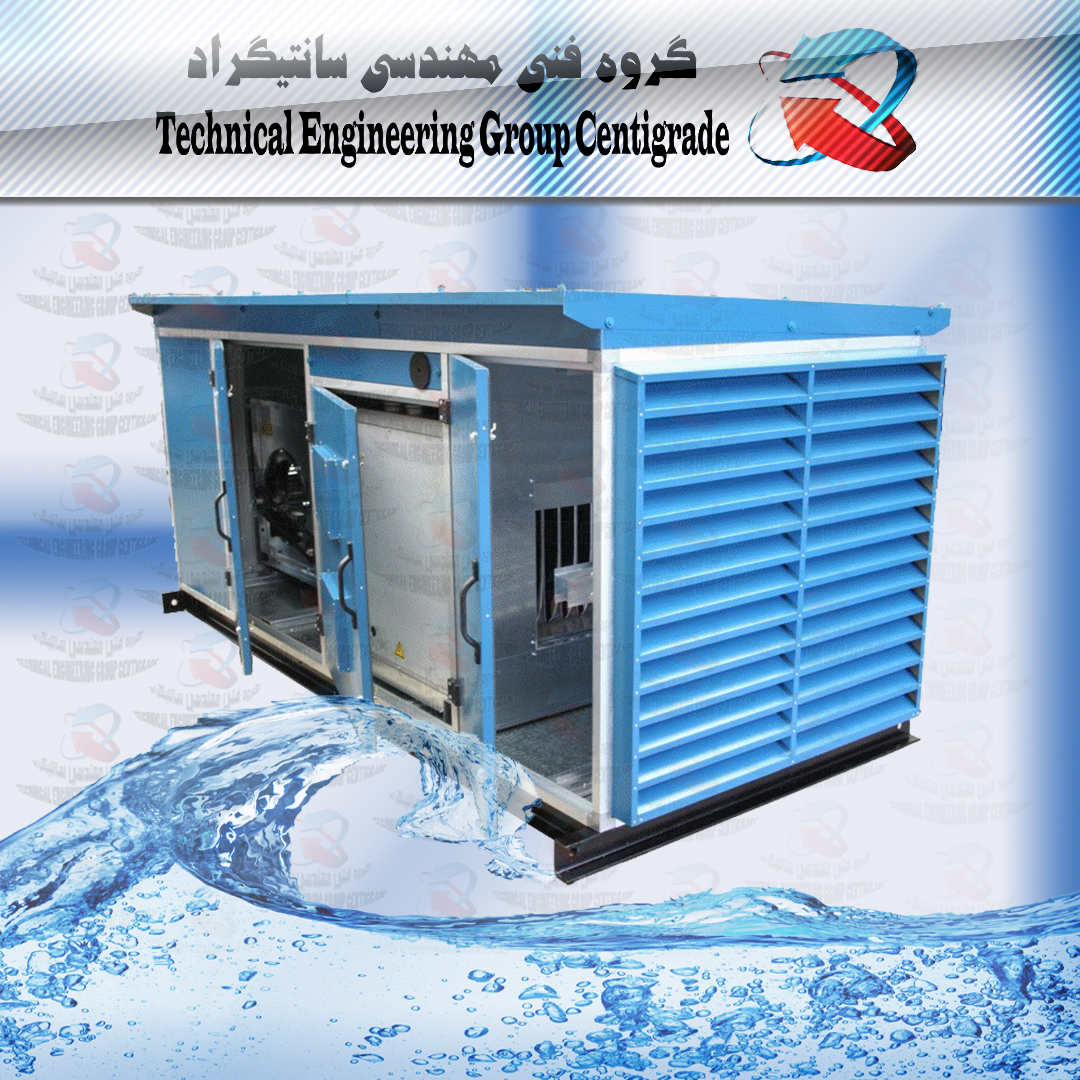

An air conditioner is a device for providing comfortable and healthy air by achieving the right temperature and humidity. The air conditioner is one of the main air conditioning devices that is placed in the way of the chiller and boiler with the air channel. Air conditioners are used in various industries to produce the required air with the desired degree and humidity. The components of the air conditioner are as follows:
1- Feeding channel 2- Fan chamber 3- Shock absorber 4- Cooling and heating coils 5- Filter chamber 6- Return air and fresh air mixing channel
If we have a general definition of an air conditioner, it is as follows: for cooling and heating and refreshing the air of public places (such as: stadium, cinema, amphitheater, wedding hall, restaurant, mosque and museum, etc.) or commercial (such as: arcade , bank, stock market, bazaar, etc.) or production halls of factories, hospitals, hotels, and offices, air conditioners are used, which is known as the best method of central air conditioning in the world. The heating coil of the air conditioner, which is fed with hot water or steam, is responsible for heating the air in the cold months, and the cooling coil of the air conditioner, which is fed with cold water or refrigerant gas, is responsible for cooling the air.
Fresh air and return air dampers installed on the air conditioner are able to control the amount of fresh air received by the air conditioner or the amount of return air from the ventilated place to any desired ratio. Various pre-filters that can be installed at the entrance of fresh air to the air conditioner prevent the entry of insects, dust, solid particles, etc. into the air conditioner, and to clean the air more, you can use bag, paper, felt, and roll filters. used . The centrifugal fan installed in the head air conditioner provides the required air circulation, and the air flow enters the distribution channel with a gentle and favorable decibel and is distributed through special valves in the approved place of ventilation.
The structural features of the air conditioner: the power transmission system includes FAST MONTAGE bolts and LOCK TAPER BUSH technique with the possibility of easy disassembly and without the need for bolts with the American WOODS technique. The outside is covered with electrostatic powder paint. The chassis of the machine is designed and made from fabric studs according to its capacity and volume. After welding and milling, the chassis is covered with epoxy paint.
