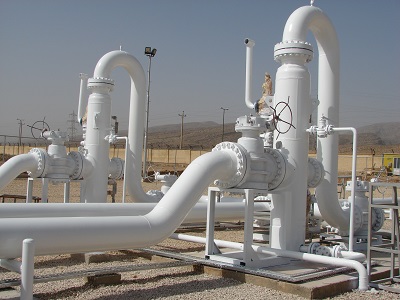

scrubber

A scrubber is one of the equipments that is placed in high-pressure gas stations for purifying and purifying high-pressure gas. The basis of work of scrubbers is separation by one of the following methods or a combination of these methods: - Separation due to weight force - Separation due to particle impact - Separation due to centrifugal force In pressure reduction stations, scrubbers are usually used in the first stage of separation and They are installed as a pre-filtration station with the aim of filtering large particles and impurities. Combining scrubbers with equipment such as separator filters and dry gas filters can increase the efficiency of the system for separating impurities. The impurity gas enters the scrubber through the line connected to the inlet nozzle, and a group of cyclones are placed in the path of the gas flow. The number and dimensions of these cyclones are calculated based on the design pressure and temperature and the inlet flow rate. Unrefined gas enters the channels of cyclones and its heavy particles are separated from the main flow of gas due to the rotating flow created in the cyclone and are directed to the bottom of the tank by gravity. These particles enter the discharge tank in the lower part of the device while the clean gas is directed to the upper chamber through special ducts and will continue the gas path in the station through the exit nozzle. In the lower part of the device and on the drain tank, there is a level indicator that if the level of accumulated impurities reaches the permissible limit, you can remove all impurities and refined particles in the tank by opening the drain valve. The scrubbers manufactured by Azarpojohan Andish Engineering Company are equipped with complete equipment such as temperature and pressure indicator, pressure safety valve and refined material level indicator. Also, equipment such as Level Switch and the arrangements required for the monitoring system can be installed on this equipment if requested by the respected employers.

Saler Company Information

Company : Azar Pajouhan Andish
More Information : View
