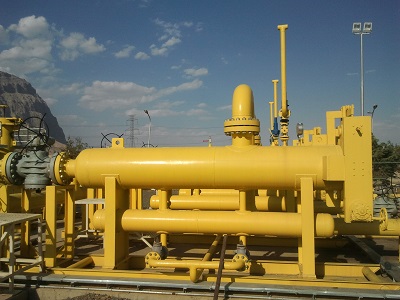

Separator filter

In gas pressure reduction stations, a set of gas purification equipment is used to prevent impurities from entering sensitive equipment and protect them. The number, arrangement and design dimensions of these filters are all a function of the operating conditions of natural gas and the request of the project owners. Filter Separator is one of the refining equipment available in natural gas pressure reduction stations, which refines gas based on two-stage operation. After connecting the equipment to the main line, impure gas enters the cartridge chamber of the equipment through the inlet nozzle and is refined by passing through the elements embedded in the filter body. The cartridges that are placed inside the filter, depending on the amount of gas pollution and the type of pollutants, as well as the operating conditions (amount of gas passing through the system, temperature and design pressure, etc.) have different types and dimensions, which differ in terms of stability Refinement efficiency and diameter of filtered particles. These cartridges can be made of paper, fiberglass, fabric, etc., and can be folded or smooth in different shapes and states. In the second stage, the gas is directed to the second chamber of the filter (Vane separation Unit) and while passing through the parallel and non-aligned metal plates, it will lose most of the fine liquid droplets. Refined impurities and particles will be directed out after accumulating in the drain tank through the corresponding valve (which is installed separately for both filter chambers). The best criterion for detecting when to replace or inspect the cartridges is to check the pressure drop created between the inlet gas flow and the outlet of the filter element chamber. All the separator filters manufactured by Azarpojohan Andish Engineering Company are equipped with a pressure difference indicator system (DP Indicator) in their cartridge compartment.
