Ardestan Manufacturing and Machinery Company, with the experience of its technical and engineering staff, offers its pallets with the required standard and under certification and after-sales service to you dear customers.

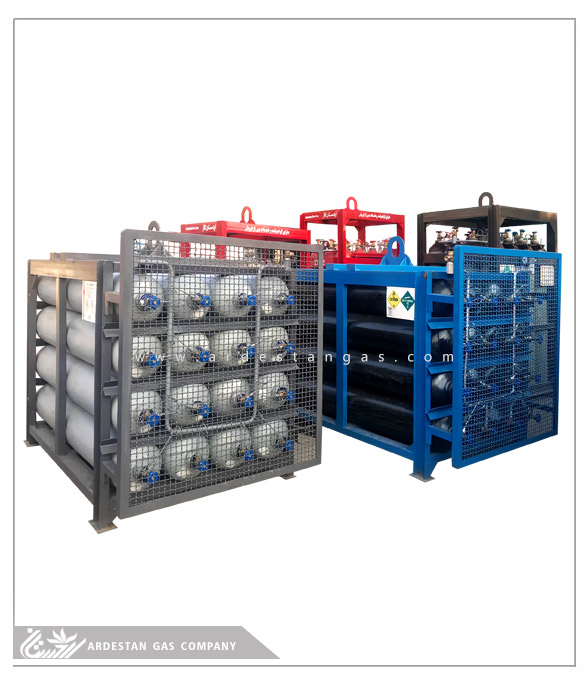

cylinder pallet; Cylinder bundle, cylinder rack
In some cases, the volume of gas contained in one cylinder alone may not meet the demand for gas, in which cases, the assembly set of several cylinders can be used to supply a larger volume of gas. The pallet contains a number of cylinders, which are known as cylinder sets. Cylinder pallets, cylinder bundles, capsule pallets, capsule bundles is a portable assembly set that is designed for ease of transportation and the use of a larger volume of gas. Designing and manufacturing cylinder pallets, cylinder bundles, capsule pallets, welded with argon welding or carbon dioxide welding and steel pipes and fittings with a working pressure of 150 bar, a working pressure of 200 bar, a working pressure of 250 and a working pressure of 300 bar. in volumes of 20, 40, 50, 60 and 80 liters in dimensions of 4, 8, 12, 16, 25, 36 and ... for oxygen, nitrogen, helium, heliox, argon, carbon dioxide and all gases under Combined and multi-component pressure according to the customer's request.
The most important benefits of capsule pallets, capsule bundles, cylinder pallets, cylinder bundles:
One of the most important advantages of the capsule pallet, capsule bundle, cylinder pallet, cylinder bundle is constant working pressure during the use of the pallet, because when the pressure of one cylinder decreases, the rest of the cylinders compensate for the lack of pressure and the output pressure is constant.
Saving in the transportation of loose cylinders is one of the other advantages of cylinder pallets. In places where gas consumption is high and there is a constant need to change cylinders, the pallets meet the needs of the workshop and the charging line well, and also by adjusting the placement outputs. By using the pallet manifold, you can use a multi-output pallet at the same time and there is no need to change the cylinder.
Cylinder pallet construction:
The way to make cylinder pallets, cylinder bundles, cylinder racks, capsule pallets is to place two or more cylinders or capsules in a metal frame that are connected by argon or carbon dioxide welding and connected with stainless steel pipes and ramps. They are connected together and at the end, the output of the bundle, pallet, rack is closed with a valve and a special gas regulator inside the cylinders.
The production of cylinder pallets or capsule pallets is done under the supervision of the technical and engineering staff and according to the standard, according to the output gas of the pallet and the number of cylinders of the pallet, and after the completion of the pallet construction, with the approval of the experts of this company, the pallet is sent to the customer's place of consumption.
Cylinder transport and storage pallet, capsule transport and storage pallet, cylinder transport and storage bundle, capsule transport and storage bundle
The cylinder storage and transportation pallet is used for workshops and centers that need a large number of cylinders for simultaneous use, which makes it easier to transport and reduce the time of moving cylinders and the same output pressure.
Basket Cylinder or cylinder basket or capsule basket
It is used in places where a number of cylinders are used at the same time. In this type of design, each cylinder has a separate outlet valve and is not connected to each other like a pallet. Cylinder basket, cylinder bundle has more safety for moving cylinders and The capsules are the cylinders that can be moved in a metal frame with argon welding or CO2 carbon dioxide welding using a forklift or crane.
Making horizontal and vertical pallets in different dimensions
