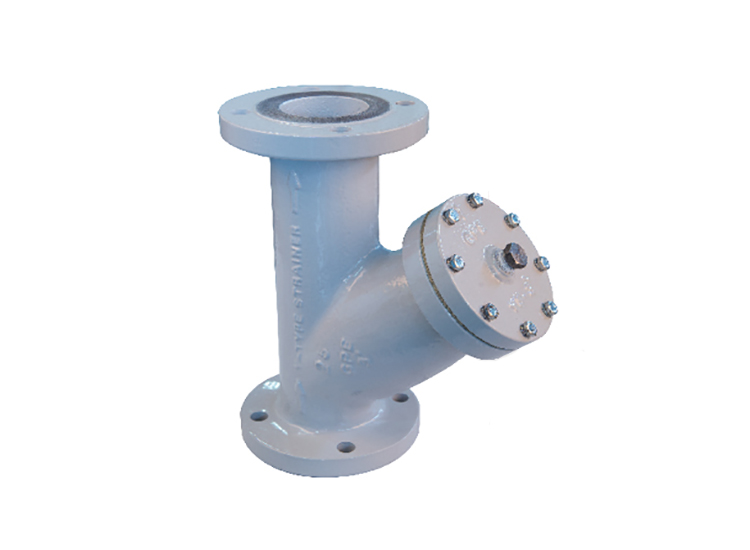

Smooth flow-type Y shape
  • Seen : 244 View

0
Smooth flow-type Y shape

• Model number: 4520

• Size: Available in sizes from 2 inches to 12 inches

• API 6D design, API 598 testing

• Ease of maintenance

• Flange standard: ANSI # 150 B16.5



GPE flow filters are used to protect the pumping system and have a very low pressure drop. The details of the design and used in the internal components are in such a way that the output flow pattern will be very smooth and with minimum pressure drop. Cleaning and maintenance operations, as well as access to the inside of the filter, which can be done easily. The dimensions of GPE flow filters are carefully designed and manufactured so that the installation of their sides can be done easily and accurately.



Features and benefits:

Complete sealing of the access valve in order not to suck air into the pipeline and avoid leakage during operation

Equipped with two body drain valves



Specifications:

GPE flow filter designed and produced by GPE company based on ASTM standard and body material can be presented as follows.

• Cast Iron

• Ductile Cast Iron

• Cast steel

• Cast stainless steel

• Bronze

The flow filter is provided as a standard with a 20 stainless steel internal mesh net, which is produced as a spot weld. Different sizes of the internal mesh network can be provided according to the needs of the project and request.

Cleaning of Y-GPE strainers is done by opening the drain valve or plug connected to the subport.
