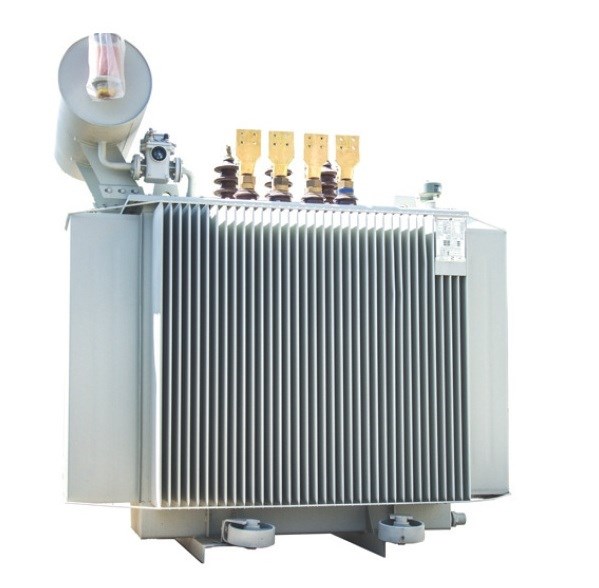

Medium power three-phase oil distribution transformers

Voltage row up to 36 kV
Transformer power from 500 to 2000 kVA
In accordance with IEC600-76 standard
Voltage reducer type transformer*
Frequency: 50 Hz
Conservatory tank with Congress
Installation height: 1000 meters above sea level*
Maximum ambient temperature: 45oC
Color: RAL7032 or RAL7038
Cooling system: ONAN
Oil according to IEC60296 standard
Has the ability to install an oil thermometer
It has the ability to install a Buchholts relay
* Can be changed upon customer request.
