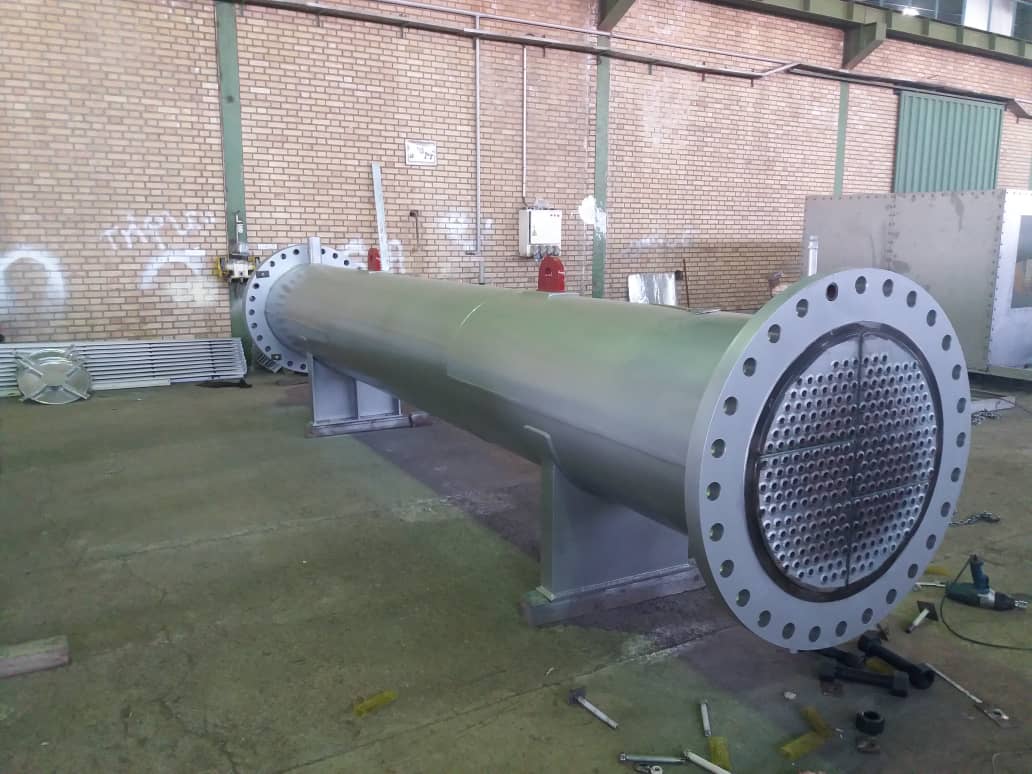

Shell and tube condenser

Shell and tube type SC heat exchangers in Saba Brodet Pars company are produced and marketed in 40 standard models from 29 to 1820 kilowatts using special software designed in accordance with international standards.
more details

SC Saba Brodt shell and tube type condensers in 40 standard models from 29 to 1820 kw using special design software and designed in accordance with ASME/TEMA standards and made using modern automatic welding (Submerged ARC welding) and tube expander machines and are subjected to various related tests including NDT and Ultrasonic tests under the supervision of the company's quality control unit. Shell condensers and SC type tubes can be used with ammonia, R22 and other common refrigerants in the refrigeration industry. The condenser tube is completely expanded first with an expander and then welded with argon.

Attributes
• Design pressure of 18 bar
• Hydrostatic test pressure of 32 bar
• Design by TEMA code and Aspen-Bjac software
• Perform all NDT tests
Tube sheets made of A105 or A516Gr.70 sheet
• Shell (body): from HII or A516Gr.70 weldable boiler plate
• Tubes with an external diameter of 26.7 or 33.7 mm, made of A106 Gr. B, expanded and welded to the tube sheets.
• Sandblast and paint with two layers of rustproof primer
• The ability to provide different designs under the TEMA code with different specifications are designed and built
