Shell and tube chiller

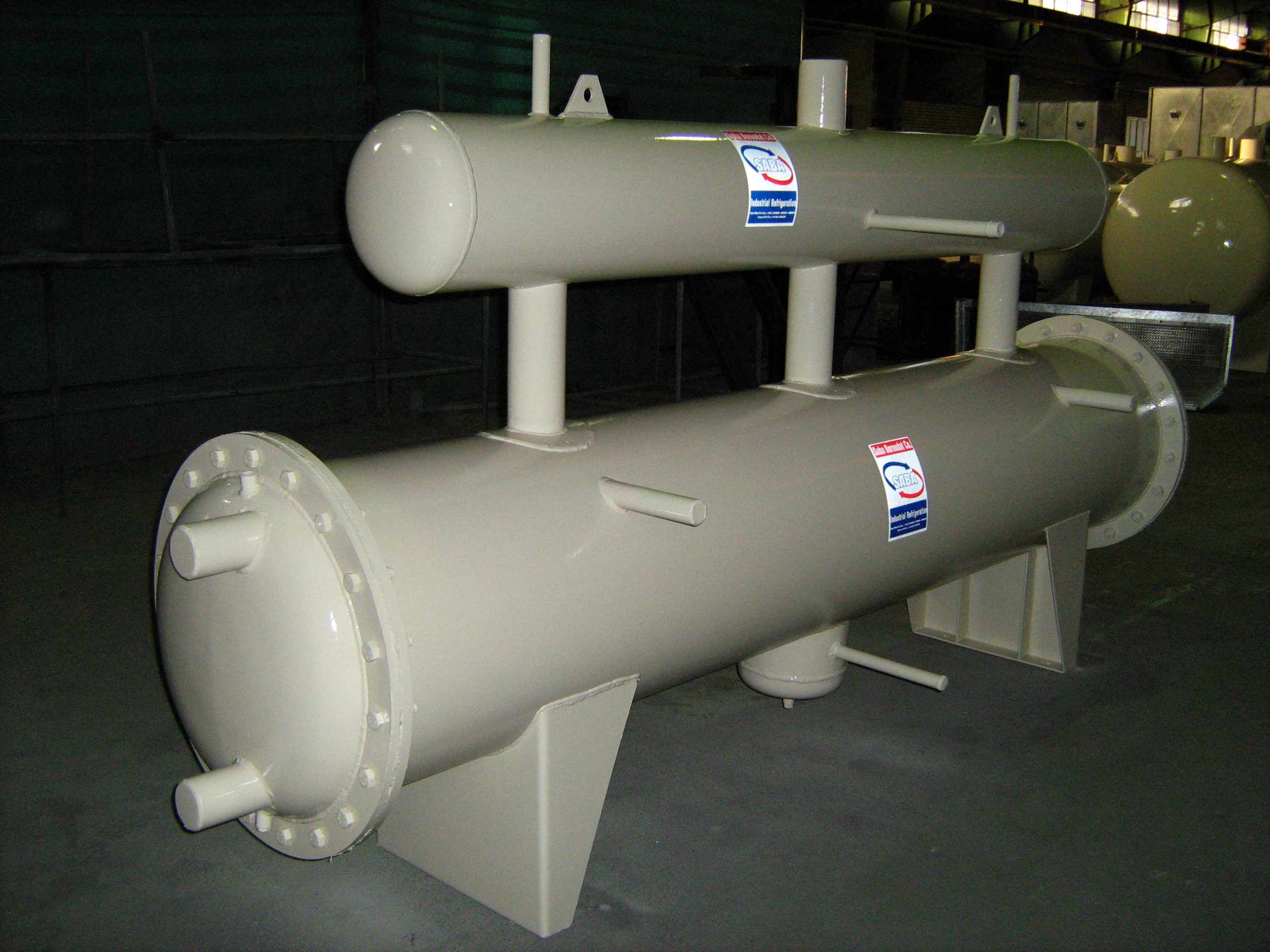

SRCH type flooded liquid chillers with or without SHLS type liquid separator are used for R717 ammonia and R22 Freon refrigerants and are specialized products of Saba Brodt Pars Company.
more details

The chiller is a SHELL&TUBE horizontal heat exchanger with tube support plates and cover flanges. The body that holds the tubes and plates and the silencers with saddles and arms (if needed) that are made of steel and welded together. The body is made of sheet metal SA516GR70 and it can be supplied with U-shaped iron saddles or metal bases. The body is equipped with metal bushings for safety valves and other equipment such as refrigerant inlet and outlet or refrigerant liquid separator and holes for pipe connections. In addition, bushings have been installed to provide the following purposes:

Washing and draining
Adjusting the liquid level (connections on the bottom side)
Connections related to waterproof glass (connections on the lower side of the body)
Oil filter (only installed in CFC refrigerants)

Other bushings for welding pipes on the body with different sizes and according to DIN2448 with normal thickness are installed on the body, and these bushings are prepared for the installation of pipe connections based on ANSIB36.10 in categories 40 to 80, the bushings are protected with a temporary plastic cover. The outer diameter of the pipes is 33.7mm and they are placed in a square plate to minimize conflict.
