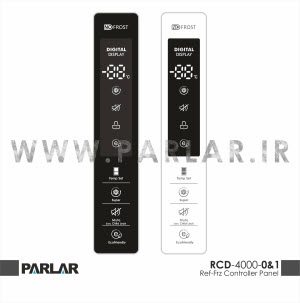

Refrigerator and freezer display and controller system (RCD-4000-0&1)

Refrigerator and freezer display and controller system (RCD-4000-0&1)
Technical Information
Display type: LED 7-Segment
Display color: white
Color and material of the holding frame: black - white - ABS plastic
Number of keys: 4
Key Type: Touch
Number of data wires: 4 (connecting the control board to the display board)
Power supply range: 170-240V, 50Hz
Specifications of compressor relay: N.O-10A/250 VAC
Heater relay specifications: N.O-7A/250 VAC
Has a protective fuse
Working temperature range: 0 to 85 degrees Celsius

Main specifications
Digital temperature control system
Automatic cooling control system
Sensor error display
Door open warning
Factory test mode
Child lock system
Superfrost function in the freezer
Temperature display in:
Freezer: Freezer and evaporator temperature
Refrigerator: Refrigerator temperature
Automatic and manual defrost capability in Combi
