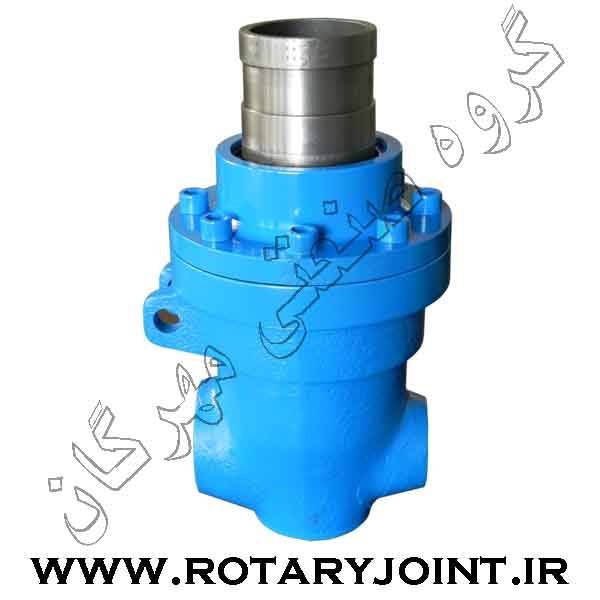

Rotary Joints Model RMZ1P for water, steam, hot oil from 1/2 to 4 inches
This specimen is available with a cast iron body (GG25) or steel (ST37, WCB, WCC) and a main steel shaft (ST52) or steel (SS304). The shaft retaining bushes are provided on the body part and in the upper part of the graphite material (SGL-EK20 GERMANY), which is why it has a higher life span than similar specimens.
This specimen is available with a cast iron body (GG25) or steel (ST37, WCB, WCC) and a main steel shaft (ST52) or steel (SS304). The shaft retaining bushes are provided on the body part and in the upper part of the graphite material (SGL-EK20 GERMANY), which is why it has a higher life span than similar specimens.
Ø Note: Under high pressure conditions, the WCB, WCC material bodies are more resistant to corrosion due to the high percentage of manganese used in steel alloying.
The process of producing flood, cap and other accessories is all done with CNC machines.
Note: All valves are tested at a speed of 56 rpm for 4 minutes at a speed of 10 minutes.
The RMZ1P rotary switchboard is available as follows:
* Fluid: Hot and cold water, steam, hot oil
*
Function pressure: 6 times (under certain conditions, there is a possibility of increased working pressure tolerance)
* Bearing body pressure:
þ GG25 max 17 times
þ ST37, WCB, WCC max 21 times
* Rotational speed below 100 rpm
* Size 1.2 to 4 inches
* Working temperature: 400 ° C
The RMZ1P Rotary Caller ID is ORDER NUMBER:
1 - Cast iron body (GG25) and Steel shaft (SS304) Series 34RMZ1P
2. Cast iron body (GG25) and steel shaft (ST52) Series 31RMZ1P
3. Steel body (ST37) and steel shaft (SS304) Series 14RMZ1P
4. Steel body (ST37) and steel shaft (ST52) Series 11RMZ1P
