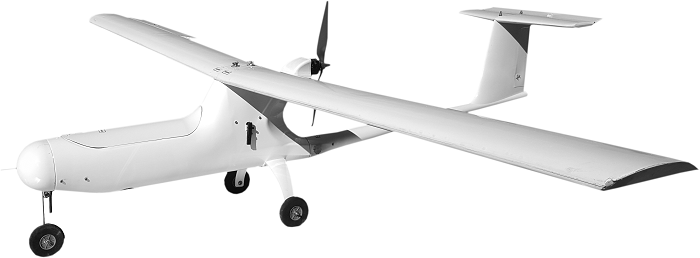

Eagle hand-launched aircraft

Structural features of the bird:

1. Use of composite materials (in case of an accident, the bird will be repaired and flyable in the shortest possible time)
2. Raised wing (maximum stability) (in the condition of fire, a stable flight can be applied)
3. Sufficient space for placing equipment (fixed camera and photo camera, autopilot, image link, data link, two battery packs for one hour flight, GPS sensors, etc.)
4. Appropriate design (maximum flight range with minimum possible energy)
5. Low weight, portable by people
6. Brief assembly (wings, body, tail and other parts are easily separated and can be assembled easily)

Avionics technical features:

1. Energy management during flight
2. Appropriate stability for taking pictures (no need to use a camera stabilizer)
3. Automatic speed adjustment (cruise control)
4. Adjust the height automatically
5. Creating Loiter rotations on the desired points
6. Use of long-range data and image links (the data link has a range of about 100 km, and the image link has a range of about 30 km)
7. Using information coding (several birds can fly in the area at the same time)
8. Using the radio control back-up link for emergencies
9. Ability to install different sensors (currently up to 5 information sensors can be installed and this number can be expanded)
10. Automatic shooting system for mosaicing images (automatically in each mission)
11. Automatic landing system

Operational videos:

1. No need to establish the station near the runway (the station can be established within a radius of 20 km from the flight area (for example, in a building), and the flight team (maximum two people) communicate with the station via wireless. After the flight, the aircraft is at the disposal of the station until the time of automatic landing.
2. The possibility of connecting the emergency SOS of the security guard with the operation system (on request - can be implemented). For example, the ranger is in an area that needs to have the surrounding images, by having a portable monitor equipped with GPS, the ranger sends his position to the control center by pressing the SOS button (and or wirelessly), and the bird is sent to a point of their presence, and starts loitering on the desired point with a radius of 1 km. The ranger has a portable monitor, and by entering the bird's code, its image Receives live on the monitor.
3. The radius of the flight is 30 km (the average speed of the bird is 70 km per hour) (flight time is one hour) (it can fly 70 km, taking into account the safety issues, a safe flight of 60 km) (30 km round trip) in consideration Taken.

Features that can be added:

1. Smoke and fire detection sensor (the bird automatically detects smoke and fire, and sends an alarm to the ground station, the location is sent)
2. Repeated shooting sound detection sensor (the bird on daily patrol, at a low altitude, can detect the sound of gunshots and send the location of the sound detection to the center.
3. Temperature and humidity sensor (to record statistical information in peripheral software)
4. Ability to install cameras to count trees and animals
5. Ability to install an IR camera
6. Installation of the warning speaker (predetermined files are placed on this system, at a distance of 100 meters on the desired position, the desired message is broadcast to people with the speaker.
