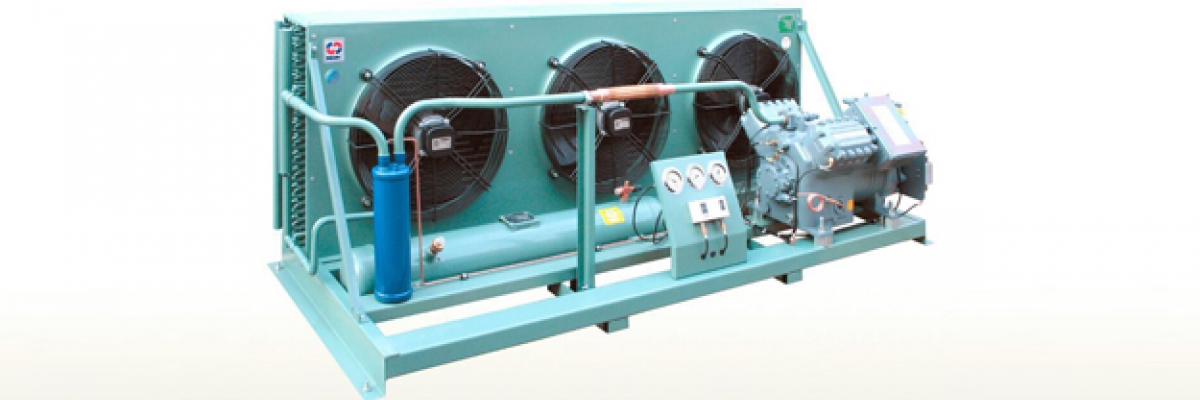

NUC air condenser

Refrigeration capacity from 4.42 to 86 KW
Can be used with R22-R134a-R404A refrigerants
Body and base made of pre-galvanized steel sheet with corrosion-resistant electrostatic paint coating
It has an external rotor type fan with low noise and high ventilation with three-phase current according to the IEC 34-5 standard and in the IP 54 protection group and with diameters of 35, 40, 45, 50 cm.
Condenser coil made of special 3/8" copper tubes with triangular arrangement and corrugated aluminum fins, the connection between the fin and the tube is made through the mechanical expander of the tubes.
After washing and degreasing, all the coils are tested with 30 bar compressed air pressure, and after complete discharge, they are filled with nitrogen gas at a suitable pressure.
NUC series condensers are supplied with NRS receivers.
